Indigo2 and POWER Indigo2 Technical Report

XL Graphics uses the CPU to implement the IRIS Graphics Library application programming interface rather than having a dedicated Geometry Engine. XL Graphics, shown in block diagram in Figure 8, provides high resolution, full 24-bit color and includes the following:

• the Raster Engine (REX3) ASIC, which converts geometric data processed by the CPU into pixel and line data that it then writes into the frame buffer

• the framebuffer (VRAM), which contains the pixel color and overlay data for the 1280x1024 display, and the CID planes for arbitrary window clipping operations

• the VC2 (video controller) ASIC, XMAP9 ASIC, and CMAP which, together with a 24-bit DAC, generate the RGB video signals sent to the monitor

FIGURE 8: The XL Graphics Board. The shaded boxes show Silicon Graphics-designed ASICs.

The main bus on the XL Graphics board provides a communication path between the elements of the graphics subsystem. The XL Graphics board is connected to the GIO64 bus via the REX3 ASIC, which can access data from the CPU at a burst rate of 267 MBytes per second.

The CPU uses the IRIS GL to transform three-dimensional polygons to 2D screen coordinates, decompose them into triangles, and finally decompose the triangles into spans by exact point sampling of the triangle's interior. These spans are then passed on to the REX3 ASIC, which interpolates them and renders the results into the framebuffer.

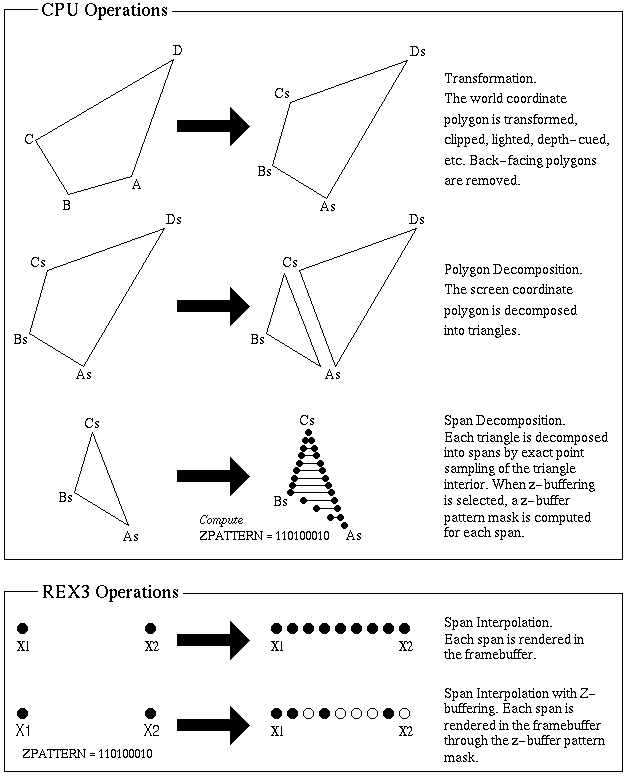

Figure 9 shows how 3D polygons are processed by the CPU and the REX3 ASIC. All transformation, clipping, and lighting calculations for points, lines, and polygons are performed in software by the CPU, including Z-buffer calculations, which are implemented in 32-bit resolution without the use of dedicated Z-buffer bitplanes.

FIGURE 9 XL Graphics processing. The majority of XL Graphics computation is performed in software by the CPU.

XL Graphics offers several advantages in speed and flexibility over hardware-based graphics systems:

• IRIS Advanced Graphics functionality such as antialiased lines and polygons and exact point sampling is provided.

• Character (font) rendering is performed by the CPU, unencumbered by unnecessary filtering through graphics hardware.

• 2D rendering is optimized in software with algorithms that speed computation by eliminating the z coordinate parameters from calculations performed by the CPU, resulting in very high performance for 2D graphics applications.

• Because XL Graphics performance is directly proportional to CPU speed, upgrades to faster CPUs automatically increase application performance.




• buffering multiple graphics drawing requests in an on-chip input FIFO

• overlapping memory accesses, command executions, and command setups to achieve maximum pipeline throughput

• using page-mode accesses in the VRAMs when appropriate, because pixels in the same page can be accessed more quickly

• buffering multiple display bus (VC2, XMAP9, CMAP, RAMDAC, etc.) requests in a second, onchip FIFO

REX3 supports both flat and linear (Gouraud) shading in both color index and RGB formats with optional dithering. The peak fill rates for the REX3 are:

• 20 Mpixels/second for lines

• 400 Mpixels/second for clear (flat, undithered, and unstippled)

• 100 Mpixels/second for flat spans (dithered)

• 50 Mpixels second for shaded spans

• It provides a window offset register, which holds the window origin and allows pixel addresses within a window to be stored relative to the origin.

• It maintains five screen masks. One of the screen masks is mapped into the user address space and can be set and used by calls in the IRIS Graphics Library application programming interface (API). The other four are available to the window manager to facilitate the clipping of overlapping windows. The addition of CID planes allows non-rectangular window clipping.

• It implements a set of sixteen logic operations on writes into the framebuffer. Window managers can use these functions to highlight selected areas and objects, to remove an object without removing objects in front or back of it, etc.

• It uses a screen to screen block move with logicop function, making movement of windows a quick and straightforward process.

• It considers the upper left corner of the screen to be the viewable origin, which supports X11 protocol screen addressing. A programmable register mode can be used to define the lower left corner as the viewable origin for GL.

• Bresenhams line drawing (including fractional-positioned, endpoint filtered antialiased lines).

• Two 32-bit recirculating pattern/stipple registers, which hold values that either prohibit the filling of a pixel (transparent stippling) or choose between the foreground and background color (opaque stippling). One register is of programmable length for X11 graphics and allows a repeat count for GL graphics; the other is 32-bit fixed length, and is useful for Z-buffering when in transparent mode. Both registers can be selectively enabled, allowing them to be used alone or in tandem.

• Burst-mode GIO64 bus transfers. When the GIO64 bus is operating in burst-mode, 8 bytes are transferred every cycle for a peak rate of 267 MBytes per second. REX3 can accept data into its FIFO at this rate, although processing the data takes longer. REX3 reads or writes pixel data over the GIO64 bus into a rectangular area at 43 million pixels per second. Both REX3 and MC1 support a robust rectangular DMA function that allows pixel data to be aligned to any arbitrary byte address and to have an arbitrary byte stride between scanlines.

• Commands for drawing IRIS GL color index and RGB antialiased lines. For color index lines, REX3 can perform a color comparison test for each pixel for full support of the IRIS GL APIs zsource (ZSRCCOLOR) mode. This technique is useful when depthcueing or anti-aliasing because it can prevent darker pixels from drawing over brighter pixels, such as in the case of a dark background. For RGB lines using the GL blendfunction to enable alpha-blending, REX3 computes alpha based on line coverage.

• 20-bit iterators for each of red, green, and blue to guarantee accurate color interpolation. This assures that accumulated color interpolation error is not visible on the screen. In addition, one of the 20 bits is used as an overfiow/underfiow bit to clamp invalid colors to either all zeros or all ones. Color index mode is supported by a 24-bit iterator in order to maintain accuracy for 12-bit pixels in color index mode.




Pixel planes hold 24 bits of information for each pixel of the display. In single buffer mode, the framebuffer contains a 12-bit color index or 24-bit RGB (8 bits each for red, green, and blue).

Pop-up planes, holding 2 bits per pixel, are used for pop-up menus, dialog boxes, and other components of a graphical user interface that temporarily obscure the image.

Clipping ID planes, also holding 2 bits per pixel, store information about which parts of windows are visible on the display. Multiple windows can overlap each other, totally or partially obscuring their contents. Individual pixels can be masked against a window boundary, thereby supporting non-rectangular windows without imposing additional overhead on the window system. The clipping ID (CID) planes are in the framebuffer VRAM.

The overlay planes on XL Graphics hold 8 bits per pixel.

The framebuffer is connected to the REX3 ASIC via the RB2s. Full use of the VRAM bandwidth is realized through a 128 pixel wide data path that connects the framebuffer to the RB2 ASIC. The framebuffer displays to a 1024 x 768 or 1280 x 1024 pixel monitor.

Depending on the mode, each pixel to be displayed is formatted with an offset of n x 256 in order to index the desired section of the CMAP RAM as shown in Figure 10. This resulting lookup index is passed to the CMAP ASICs which generate 24-bit RGB values for display. These values finally enter the RAMDAC where they are gamma-corrected for the monitor by the use of a second level of lookup tables, and analog RGB output is produced.

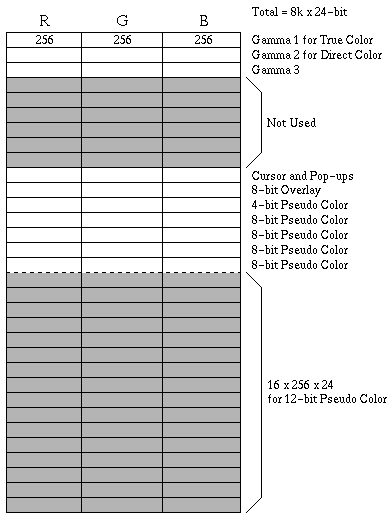

FIGURE 10 Organisation of the CMAP RAM (indexed by row).
