Multi-Channel Option

VTX and RealityEngine Graphics

The Multi-Channel Option, available for systems equipped with industry leading VTX, RealityEngine, and RealityEngine2 graphics subsystems, provides a cost-effective solution for customers requiring multiple outputs. Rather than purchasing multiple systems and genlocking the outputs together, the Multi-Channel Option allows users to drive up to 6 independent channels all from a single computer.

Ideal for Virtual Reality, Entertainment, Visual Simulation, or any application requiring multiple viewports, the Multi-Channel Option offers users a flexible approach in configuring an environment that best matches requirements and budgets.

The Multi-Channel Option is the second generation of multiple video output technology available from Silicon Graphics offering a greater number of channel outputs, a wider variety of output formats, lower transport delays, and the capability to simultaneously drive two different formats.

Features

• Up to 6 channels of output per Multi-Channel Option

• Support for multiple Multi-Channel Option Boards in a single system equipped with more than one RealityEngine graphics subsystem

• Simultaneous display of two different formats

• Low Additive Transport Delay of < 0.5 milliseconds

• Wide range of formats ranging from multiple high resolution (1280 x 1024) to lower resolution outputs such as VGA and RS170

• Provision for genlock to external reference signals

• Simple "setmon" system command selects desired format

• Graphical user interface available for custom calibration

• Support for Crimson, PowerSeries, and Onyx compute platforms equipped with VTX, RealityEngine, and RealityEngine2 graphics subsystems

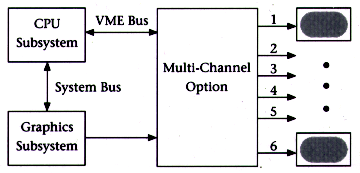

The Multi-Channel Option is designed specifically for users requiring multiple viewports from within an application. Tightly coupled to the graphics subsystem, the Multi-Channel Option converts digital information stored in the graphics framebuffer into a variety of multiple analog video signals (or channels) which can then be displayed on additional monitors and/or projection devices.

Because the Multi-Channel Option is an integral part of the graphics subsystem, no special programming interface (library) is required for operation. Silicon Graphics supplies several combinations of formats with the Multi-Channel Option (see table on reverse side for details). Using standard system commands (setmon), a user specifies which format combination the Multi-Channel Option will use when the graphics is restarted. The Multi-channel Option requires no other adjustment and will continue to boot with the configuration chosen.

For applications requiring sensitive customization, the Multi-Channel Option includes a graphical program that allows users to change video H-Phase calibration, enable video pedestal, make monitor-specific gamma corrections, and enable or disable sync.

Because the The Multi-Channel Option is architected to be tightly integrated to the graphics subsystem and is treated as a full-fledged member of the graphics subsystem, it does not suffer from lengthy transport delays.

System Requirements

• VTX, RealityEngine, or RealityEngine2 Graphics

• Requires VME Slot




R,G,B              3 BNC

Composite Sync     1 BNC

Horizontal Sync    1 BNC

Vertical Sync      1 BNC

Genlock            2 BNC         I/O for External Sync Source

The I/O panel is used to provide the physical channel connections. Since different chassis platforms have varying I/O panel configurations the maximum channel configuration are as follows:

• Up to 4 channels in Deskside Chassis

• Up to 6 channels in Rack Chassis with one graphics subsystem

• Up to 8 total channels in SkyWriter configurations with two Multi-Channel Option boards installed (e.g. combination of 6/2, 4/4, or 2/6)

• Up to 16 total channels in Onyx RealityEngine2 with three Multi-Channel Option boards installed

Qty   Resolution    Qty     Resolution      Timing Comments

2     1280 x 1024                           60 Hz non-interlaced    Requires RealityEngine Graphics with
                                                                    2 or 4 Raster Managers (RM). 4 RM's
                                                                    provides anti-aliasing.

1     1280 x 1024    2    640 x 480 (VGA)   60 Hz non-interlaced    Requires RealityEngine Graphics with
                                                                    2 RM's. 4 RM's provides anti-aliasing.

3     1024 x 768                            60 Hz non-interlaced    Requires RealityEngine Graphics with
                                                                    2 RM's. 4 RM's provides anti-aliasing.

6     640 x 480 (VGA)                       60 Hz non-interlaced    4 Channel maximum with VTX graphics.
                                                                    Requires 2 RM's with RealityEngine
                                                                    graphics for 6 channels. 4 RM's
                                                                    provides anti-aliasing.
