After this brochure was published, faster R4400 CPUs at 200MHz and 250MHz were released, the R8000 chip set at 75MHz and 90MHz, the R10000 CPU, InfiniteReality graphics, etc. See the main SGI index for details of these later CPUs and graphics subsystems, eg. the InfiniteReality Technical Report covers the use of IR in Onyx systems.

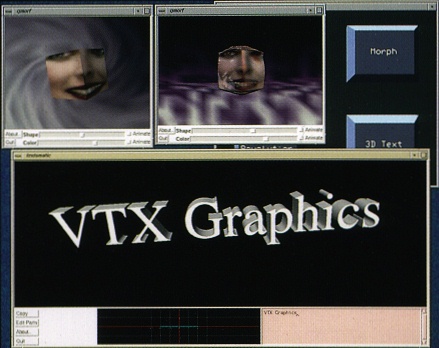

Onyx VTX Graphics Subsystem

Onyx VTX graphics supercomputers offer technical professionals, scientists, and engineers a powerful combination of the world's fastest and most advanced compute and graphics technology. As the entry-level graphics subsystem for the Onyx line of graphics supercomputers, VTX provides performance comparable to Silicon Graphics' Crimson VGXT graphics system, yet with the advanced capabilities of the industry-leading RealityEngine graphics supercomputers. Available in both deskside and rack configurations, Onyx VTX systems combine a parallel CPU subsystem with up to 24 MIPS 64-bit RISC microprocessors with the powerful VTX graphics subsystem to provide leading-edge visualization capabilities and true super-computer power.

VTX graphics offers superior price/performance for compute and transform-oriented applications such as CFD, finite element analysis, high-end CAD, and molecular modeling. VTX is also ideal for applications that require reduced resolution anti-aliasing and RealityEngine graphics-quality texture mapping.

VTX graphics include unique visualization capabilities like stereoscopic-viewing in a window, full-performance texture mapping and support for multi-sample anti-aliasing. VTX leverages technology from the industry-leading RealityEngine2 graphics subsystem to offer high-bandwidth image processing and visualization, while focusing on cost-effective design.

Features

Onyx VTX systems provide the most advanced real-time 3D graphics feature set available, including:

• Real-time texture mapping

• Anti-aliasing for polygons, vectors, and points

• Quad buffering for interactive high-resolution stereoscopy

• Hardware support for Image Processing

• Standard NTSC/PAE/S-Video output

• Broadcast-quality video options available

• Stereo in a window

• 32-bit z-buffer

• Ultra-high quality color 12-bits per component (48-bit RGBA, quad-buffered)




The Onyx family of graphics supercomputers offer true supercomputing power with the capability to support from 2 to 24 R4400 150MHz CPUs. Combined with the power of VTX graphics, these systems enable technical professionals to interact with massive data sets in real-time. VTX graphics meets these requirements by providing over 1M shaded polygons and vectors per second and 450K textured meshed triangles.

Standards and Development Tools

The Onyx product family runs the IRIX operating system which provides a standards-compliant version of UNIX SVID 5.4 with extensions for real-time and parallel processing. As all Silicon Graphics MIPS-based systems run this operating system, any software developed on Onyx VTX will also run on the uniprocessor deskside Crimson or desktop Indigo and Indigo2 systems.

Expandable

A variety of options are available for VTX users to enhance system functionality. For lower cost multiple-output solutions, the Multi-Channel Option video board takes the output of the single frame buffer and sends different segments within the frame buffer to distinct video outputs.

VTX is also compatible with the VideoFramer option board which provides broadcast quality single frame input and output and the VideoCreator video option board which allows full-screen real-time recording.

Application Focus

Silicon Graphics strives for balanced graphics in its systems, compute, and networking capabilities to enable applications to perform at peak efficiency. This requires that all elements of the system perform well, such that no section, be it the CPU, the graphics, or the networking, causes a bottleneck for any other.

Features

Targeted for general-purpose visualization, the VTX is rich with advanced rendering features.

Hardware Texture Mapping

• Trilinear Mip Map Filtering

• Bicubic Interpolation

• Ultra-high performance

• Per-pixel perspective correction

• Up to 512 x 512 resolution

• Up to 32K x 32K resolution for tiling

• 4 to 48 bits per texel

• Support for Environment Mapping

• Automatic support for texture paging

• Anti-aliasing of polygons, vectors, points

• No performance penalty vectors, points

• Sub-pixel positioning and computation

• Support for low-resolution multi-sample

• anti-aliasing (RealityEngine style)

• Per-pixel fog/haze computation

• 48-bits per pixel (12-bits each for RGBA)

• Quad buffered for smooth motion of rendered geometry, stereoscopically

• 8-bit double buffered overlay/underlay

• Gouraud or Flat shading

• Phong lighting model

• Ambient, Diffuse, Emissive, Specular

• Up to 8 light sources

• Support for local, infinite, and spotlights

• Two-sided lighting of polygons

• 40 MB frame buffer memory

• 160 MHz DAC's

• Hardware LUT's

• 19" monitor

• 1280 x 1024 72/60/50Hz (std. monitor)

• 1280 x 960 76Hz

• 1024 x 768 60Hz (std. monitor)

• 960x 680 60Hz

• 640x512 60Hz

• 640 x 496 60Hz

• 640 x 480 60Hz

• 1280 x 512 stereo

• 1280 x 492 stereo

• 1024 x 768 stereo

• 960 x 680 stereo

• 640x512 stereo

• 1280 x 1024 interlaced

• 1280 x 959 interlaced

• 770 x 756 (PAL)

• 645 x 486 NTSC

• 640 x 480 Field Sequential

Polygons

  Meshed Triangles (Flat shaded)    1.0M
  Meshed Triangles (Textured)       450K
  Independent Quadrilaterals        290K

Vectors

  Anti-aliased connected vectors    1.0M

Points

  Anti-aliased points               1.5M

Pixel Fill Rate

  Flat shaded (no Z)                90M
  Textured (Tri-linear, Z, Fog)     80M
